How To Understand IP67 Rating for Electronics?

IP Ratings (Ingress Protection) are a standard that defines how well batteries are protected against solid objects and liquids.

Understanding IP Ratings is crucial when choosing batteries for different applications, as it indicates the level of protection the batteries offer against environmental factors.

What Is IP 67 Rating?

An IP67 rating is a standard used to define the level of protection a product provides against the ingress of solid particles and liquids.

Simply, it indicates the product’s ability to withstand dust, dirt, and water. The IP67 rating is commonly associated with products considered “waterproof” rather than “water-resistant.”

Do you know that iPhone IP Rating for series 7 and was IP67 but from 15 series its IP68

what is an ip67 rating

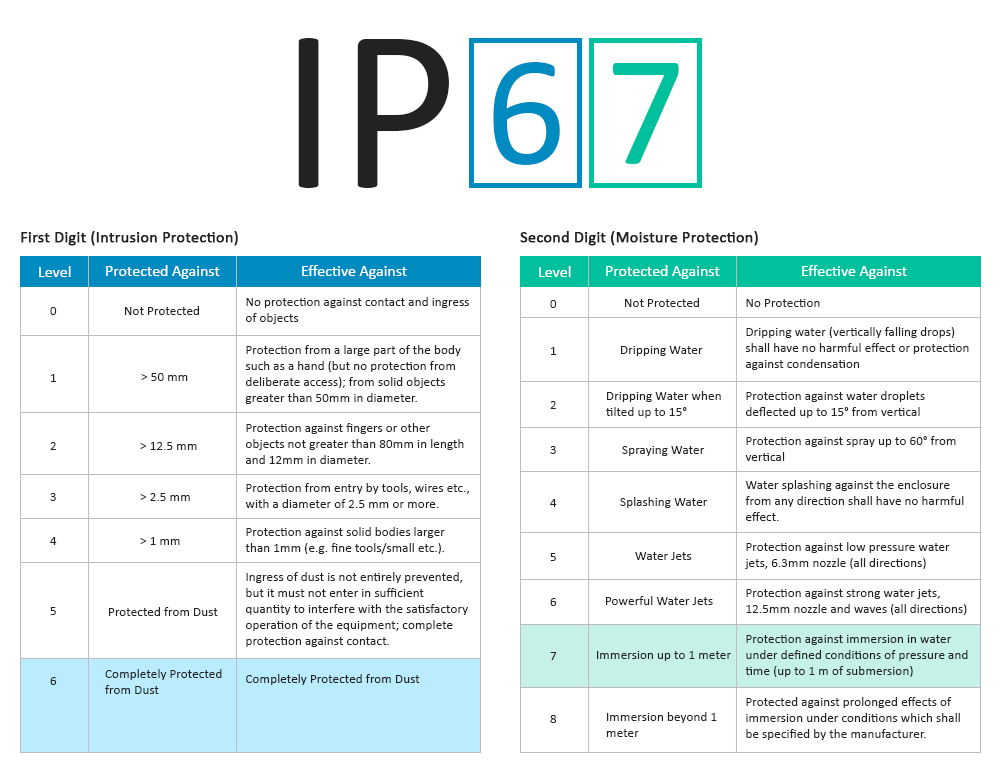

IP 67 Rating Meaning

The IP in IP67 stands for Ingress Protection, and the 67 represents the level of protection the product offers.

The first digit (6) indicates protection against solid particles, while the second digit (7) denotes the protection against liquids.

With IP67, the product is completely protected against dust and can withstand 30 minutes of immersion in water up to 1 meter.

Explanation Of The IP Code System

The IP code system is an internationally recognized standard (IEC 60529) that classifies and rates the degree of protection a product provides against the intrusion of solid objects, dust, accidental contact, and water.

The code consists of the letter “IP” followed by two digits and, in some cases, additional letters.

Importance Of IP Ratings

IP ratings are crucial as they provide consumers and businesses with a clear understanding of a product’s environmental protection.

This information helps make informed decisions when selecting products for specific applications, ensuring they are suitable for use in various conditions.

IP67 vs. IP65 vs. IP66 Ratings

Key Differences

The key differences between IP67, IP65, and IP66 ratings lie in the protection they offer. While all three ratings provide some degree of protection against dust and water, the IP67 rating offers a higher protection level than IP65 and IP66.

Comparing Levels Of Protection

IP65-rated products offer protection against low-pressure water jets and limited dust ingress, making them “water-resistant.” IP66-rated products protect against powerful water jets and limit dust ingress.

Conversely, IP67-rated products offer complete protection against dust and can withstand immersion in water, making them “waterproof.”

Common Misconceptions

One common misconception is that all “water-resistant” products can withstand complete water submersion, which is not the case.

It’s important to understand a product’s specific IP rating to determine its protection level accurately.

Understanding The Ingress Protection (IP) Code System

Breaking Down the IP Code

The IP code is divided into two digits, each with a specific meaning. The first digit represents protection against solid objects, while the second represents protection against liquids.

Additional letters may be included to indicate other forms of protection, such as protection against mechanical impacts or hazardous parts.

Interpretation of the Numbers

The numbers range from 0 to 6, with 0 indicating no protection and 6 indicating complete protection.

For example, a product with a rating of IP6X would be completely protected against dust, while a product with a rating of IPX6 would be protected against powerful water jets.

Understanding the Letters

In some cases, additional letters may be included in the IP code to indicate specific protection. For example, the letter “K” denotes protection against dust and water ingress during high-pressure and high-temperature washdowns.

Benefits Of IP67-Rated Products

Superior Protection Against Dust

IP67-rated products offer complete protection against dust, ensuring that no solid particles can penetrate the product and cause damage to its internal components.

Immersion in Water

These products can withstand immersion in water up to 1 meter for 30 minutes, making them suitable for wet environments without the risk of water damage.

Durability in Harsh Environments

IP67-rated products are designed to withstand harsh environmental conditions, making them ideal for outdoor use, industrial settings, and other demanding applications.

Applications Of IP67-Rated Products

Consumer Electronics

Smartphones, smartwatches, and Bluetooth speakers are often designed with IP67 ratings to ensure protection against dust and water, providing users with peace of mind.

Industrial Equipment

Industrial machinery, control panels, and electrical enclosures often require IP67-rated components to ensure reliable operation in dusty and wet conditions.

Outdoor Lighting

Outdoor LED, garden, and floodlights are commonly equipped with IP67 ratings to withstand exposure to the elements and ensure long-term durability.

How To Identify IP67-Rated Products

Reading Product Specifications

When shopping for products, carefully read the specifications to identify the IP rating. Look for clear indications of the level of protection against dust and water.

Recognizing IP67 Certification

Look for official IP67 certification labels or markings on the product packaging or documentation, indicating that the product has been tested and certified to meet the IP67 standard.

Tips for Purchasing IP67-Rated Items

When purchasing IP67-rated items, consider the specific environmental conditions in which the product will be used.

Ensure that the IP67 rating aligns with the level of protection required for the intended application.

Conclusion

In conclusion, the IP67 rating provides high protection against dust and water, making it suitable for various applications, from consumer electronics to industrial equipment.

Understanding the IP code system and the benefits of IP67-rated products is essential for making informed purchasing decisions and ensuring the reliability and durability of products in various environments.

By being aware of a product’s specific IP rating, consumers and businesses can confidently select products that meet their environmental protection requirements.
